VCM 2 SP177-1: Free, Online, No Need License

This is for those looking for a good VCM 2 cloned unit with functionality confirmed and sold at a decent price.

And this is the one you should have:

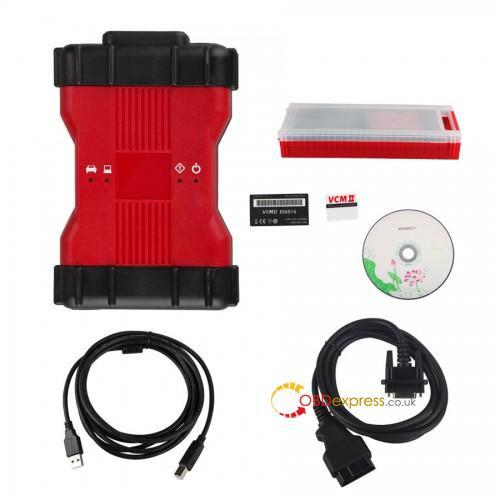

ford-vcm-ii-SP177-1-FULL-KIT

It’s a VCM2 SP177-1 full kit

3 keywords to VCM 2 SP177-1:
Free, Online,Non-License

Why do you buy VCM 2 SP177-1:
  1. The latest software version: IDS 111
Free update
  1. IDS native installation
Directly install IDS on the laptop;
No longer install on a VMware machine
No need license
Never have license expiration problems
  1. Online function supported
  2. Stable to do programming because of high quality
  3. Online accounts available for users to pay for
  4. Free to get password calculator
User name: flyfvdi
Password: flyfvdi@2018

VCM2 SP177-1 functions confirmed:
  1. Automatic vehicle recognition
  2. Read & Clear Diagnostic Trouble Codes (DTCs)
  3. Live Data-stream with Recording & Playback Functions for Main ECUs
  4. Guided Fault Finding
  5. New Software Re-flash for Existing ECUs
  6. Programming & Installation of new ECUs
(PCM, ABS, Instrument Cluster, Air Bag, Fuel Pumps, etc.)
  1. Program New Keys
  2. Injector Coding
  3. Set, Adjust or Remove Speed Governors
  4. DPF Regeneration
  5. Brake Bleeding
  6. Steering Angle Resets
  7. All Other Dealer Functions

VCM2 and Ford module programming:

VCM2 and PCM reprogramming:
VCM2 SP177-1 Where to:
vcm2-good-clone-1

vcm2-good-clone-2

Clone VCM 2 PCB, which best?

Look here: PCB from vcm2 sp177-c1, vcm2 sp177-c, vcm2 sp177, vcm2 sp177-2, vcm2 sp177-g

Vcm 2 sp177-c1 pcb (the best quality with USB sticker for WiFi)

Vcm 2 sp177-c pcb (the best quality)

vcm2 sp177 pcb (high quality)

vcm2 sp177-2 pcb (2018 version)

vcm2 sp177-g pcb (for Land Rover)

vcm2 pcb color, which best


Both vcm2 sp177-c1 and sp177-c are the best quality!!

vcm2 sp177-c1 vs vcm2 sp177-c

How to confirm vcm2 sp177-c is the best

2018年10月30日星期二

(Fixed)missing xml files - VCM2 IDS cannot complete PCM flash

If your VCM2 IDS cannot flash PCM coz xml files are missing,How to do? Here is someone's solution for you,enjoy!
Problem:
I had a 2013 Ford fiesta TDCi .
I tried to do PMI ..
There is later update available for this PCM online .
I could not complete the pcm reflash as it was looking for two missing xml files on it ..
Is your IDS also a mix off old soft with later soft to keeep the licence for three days .
On previous vehicles i tried i never had problems on updating the PCM to latest calibration files..

Remedy:
I also have this problem, somehow all files in this folder got zero size. So every time it happened I copying them from another location and after programming works fine. I did a lot of cars and trucks with this setup

In detail..

path approximately program files/ford/ids if you have a problem do the search on the file name.
Install any new IDS version from motorcraft.com or any reliable source (I have mine from http://www.obdexpress.co.uk/wholesale/ford-vcm-ids-v108.01-software.html)
and copy them to host desktop.
After, in VM setting do share folders and you can get those files from VM

Searches related to PCM flash with VCM2:

How to preprogram PCM with VCM2:
IDS error: in PCM reprogramming
IDS pop-up: PCM not recognized
PCM flash for Ford Focus:
PCM flash for Ford Transit
VCM 2 best for PCM flash:

2018年9月24日星期一

How to: Ford IDS reprograms PCM using different calibration files

Confirmed! There is a way to use IDS software to reprogram the Ford PCM using different calibration files. Just make sure you have the correct one - mainly from a van/vin that has same turbo & injectors.

This is how to remap using Ford IDS cracked software.
This is based on my experience (Ford Transit Custom 2.2 125ps), UK based vehicle mapped from 125 to 155ps.
YOU DO IT AT YOUR OWN RISK. YOU ARE RESPONSIBLE YOURSELF FOR ANY HARM OR DAMAGE THAT YOU SUFFER AS A RESULT. INCLUDING LOSS OF WARRANTY. I MIGHT NOT BE ABLE TO ASSIST IN CASE OF ISSUES.
Things needed:
- basic IDS knowledge (a lot of guides can be found here: http://blog.obdexpress.co.uk/ use the Search button)
- IDS with programming capability (VCM2 SP177-C1, VXDIAG Nano or similar) - cracked will do
- Your own VIN and PCM Calibration number to revert back in case of issues
- Reference vehicle details - (the hard bit - but can be found online) - needed to get the calibration numbers to use; in my case this was Ford Transit Custom 2.2, 155ps
The basic process is:
VERY IMPORTANT!!! - MAKE SURE YOU CAN RE-PROGRAM YOUR VEHICLE WITH YOUR OWN CALIBRATION NUMBERS (BEFORE TRYING ANY OTHER ONES). FOLLOW THIS PROCEDURE USING YOUR OWN VIN AND PCM NUMBER - THIS IS WHAT YOU WILL NEED TO DO IF THINGS DONT WORK!!!!
1) get VIN and PCM calibration number from your reference vehicle
2) run IDS software without physically connected to Vehicle
3) run Vehicle identification which will obviously fail and continue to manual vehicle identification
4) in manual vehicle identification enter the PCM calibration number - read on below about it
5) when asked enter the reference VIN and odometer value (any)
6) now you can navigate to Module Programming (PM not PMI) and program PCM but DONT PLUG IT TO YOUR VEHICLE YET
7) you should be asked to re-enter the VIN (enter the one from the reference vehicle)
8) you will get an warning of a low voltage
9) connect the cable to your vehicle and follow the instructions on the screen
10) after the programming is finished (takes around 10 min on mine) - you will need to reset all adaptation values as the current ones will be invalid (this is very important)!! - MAF, Injectors, Turbo
11) go for a drive - if it has any issues (no turbo, complete lack of power, or no start) - run the same procedure with your own VIN and PCM numbers.
Now, the reference vehicle should be of similar spec to yours. To minimise any issues I made sure the following components are the same before trying to program its calibrations to mine:
- injectors
- turbo
- pcm HW
All of the part numbers can be checked in ECAT for your vehicle and the referenced one. You will need VIN to do so.
You can search google images for vehicle registration numbers and get the VIN using ETIS Online. You need the VIN to get part numbers in ECAT (injectors, turbo, pcm). If the numbers match (dot to dot) run both the VINs through ETIS Online and check modules HW numbers. Make sure the HW number of PCM is the same and other modules are not far off.
The alternative way of finding reference VIN is just using ETIS Online - just experiment entering VIN that is next to yours (serial number). My reference vehicle was 1 serial number below my VIN
Once you happy with your reference vehicle - we can move on and find the calibration numbers for it.
Go back to ETIS Online and write down the SW number for PCM (calibration numbers). It will be in the following format: BK21-14C204-BNU. The last character is the revision of the calibration - BK21-14C204-BNP was before BK21-14C204-BNU and BK21-14C204-BNU was before BK21-14C204-BNV.
When entering the calibration in IDS you will need to use any but the latest (otherwise IDS won't let you upgrade).
You can check the calibration revisions here: https://www.fordtechservice.dealerconnec...roduct=IDS
just enter the SW parts and try changing the revision number. You will quickly figure out what revisions are available.
Fingers crossed


Source:http://blog.obdexpress.co.uk/2018/09/25/ford-transit-custom-pcm-calibration-reprogramming/

2018年9月6日星期四

Ford IDS 110 download FREE: 100% tested

Ford IDS 110 download FREE:
ford-ids-110-download-1

ford-ids-110-download-2

FORD IDS 110.01 & cal 91 Native install 2018
ford-ids-110

ford-ids-native

IMPORTANT: Ford IDS 110 above has NOT been tested by real professionals.
If you are looking for IDS with security and relief, this is what you should have;
You can find that Ford IDS 110 is updated there.
Confirmed to work with VCM2 SP177-C1 and VXDIAG VCX NANO Ford



How to install Ford IDS 110 software:

Ford IDS 110 Install – Video Help:


Important: INSTALL V110, WITH THE INTERNET CONNECTED ON YOUR COMPUTER
SETUP V110 WILL DOWNLOAD AUTOMATICALLY, C98 CALIBRATION FOR DATABASE


Step by step install Ford IDS 110:

1- Install the ids 86 before changing the date to 1 07 2015

(hold the date 1/7/2015 ,, until you finish step 5
every time you restart your computer, check the date, if it is  on 1/7/2015)

2- install patch ( choice option 2 )

3- Make a backup of your windows system (I recommend, this is optional)

4- Open the program with the interface connected ,,( choose NON DEALER,when open program for first time ) , keep vcm turn on,on the computer.

5 – create a restore point,,,then turn off vcm of the computer

6 – Okay, now install the new version,  v110.01,, before install, 110,01 version, change the date of your computer, to the current day

7- After installing, go back to the restore point, which you created in step 5, activate this restore point, and then open the program

8- Finally, install FordExtendProgram (click right mouse button click on, run as administrator)

Done, will work in the new version


2018年9月3日星期一

VCM 2 SP177C cannot read voltage on obd pin 16 (Solved)

VCM 2 SP177-C voltage issue:

I have one of my VCM 2 SP177C that doesn't read voltage on obd pin 16.
It does power up, but when trying to program, I get a message saying vehicle battery is low. Voltage going into vcm2 is steady 13.9v as I always use my Schumacher battery charger while programming.
The problem is inside the vcm2. Either the processor doesn't see voltage or sees a lower voltage than what comes in.
Anyone has some sort of electrical schematic of those sp177c so i could try to repair it ??
Thanks


Possible solution:

If you have new ids then car's battery needs to be like 14v.!
Get into runtime folder and edit file "batterymonitor"
Something like this::::
BatteryMonitor
[BatteryLevels]
MaxLowVoltage = 11600
MinMediumVoltage = 11500
MaxMediumVoltage = 12000
MinHighVoltag = 12800
Then try again.!

Source:http://www.obdexpress.co.uk/service/how-to-solve-vcmii-cannat-read-voltage-on-pin16.html

VCM 2 SP177-C1 PCB

Look here: VCM2 SP177-C1 inner board Source:  http://www.obdexpress.co.uk/wholesale/best-ford-vcm-ii-diagnostic-too...
